In semiconductor manufacturing and testing, precision and efficiency are critical. Two essential tools in this field are wafer probe stations and automatic probers, each serving distinct purposes depending on the testing environment and production needs. While both systems are used to test and measure electrical characteristics of semiconductor wafers, their design, operation, and ideal use cases differ significantly.
What is a Wafer Probe Station?

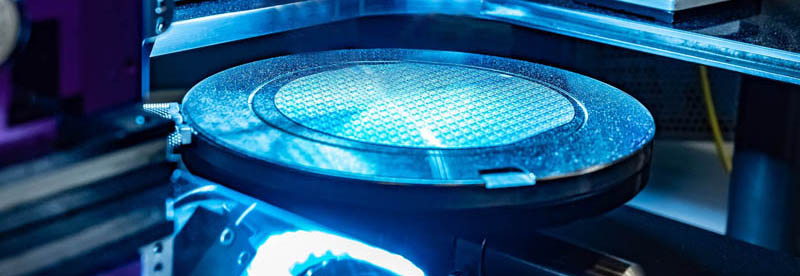

A wafer probe station is a piece of equipment designed for manual or semi-automatic testing of semiconductor wafers. It consists of a chuck that holds the wafer, a microscope for precise probe placement, and manual or motorized arms equipped with probes that make contact with individual points on the wafer. Engineers use wafer probe stations to test electrical characteristics, such as current, voltage, and resistance, on specific areas of a wafer.
Common Applications:
- • Research and development (R&D) environments.
- • Low- to medium-volume testing.
- • Failure analysis and prototype validation.
Wafer probe stations come in a variety of configurations, ranging from fully manual systems, where the operator manually adjusts the probe placement, to semi-automatic stations, which allow some level of automation in probe alignment and movement. The flexibility and control offered by wafer probe stations make them ideal for laboratories and testing environments where high customization and manual adjustments are required.

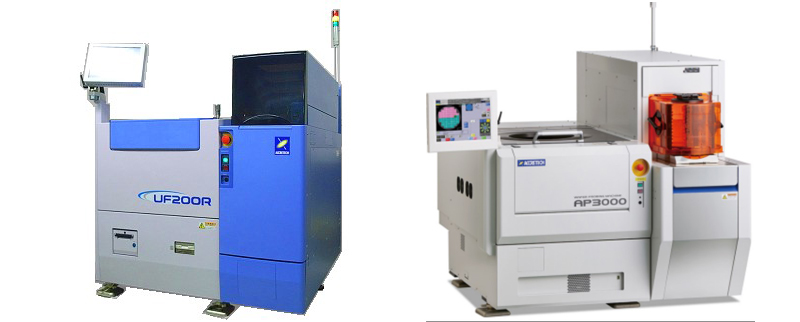

What is an Automatic Prober?
An automatic prober, in contrast, is designed for high-volume production environments. These machines are fully automated, capable of rapidly testing large quantities of semiconductor wafers with minimal human intervention. Automatic probers are often integrated into production lines, offering seamless wafer handling, alignment, and testing processes. These systems use robotic arms or automated mechanisms to place probes precisely on the wafer's surface, allowing for highly accurate and repeatable measurements.
Typical Use Cases:
- • High-volume production lines in semiconductor fabs.
- • Automated quality control during production.
- • Integration with other automated testing systems for efficiency.
Automatic probers are particularly suited to testing a high number of wafers in a short time, ensuring consistency and reducing human error in mass production environments. Their fully automated nature allows for higher throughput, making them the preferred choice in large-scale manufacturing operations.

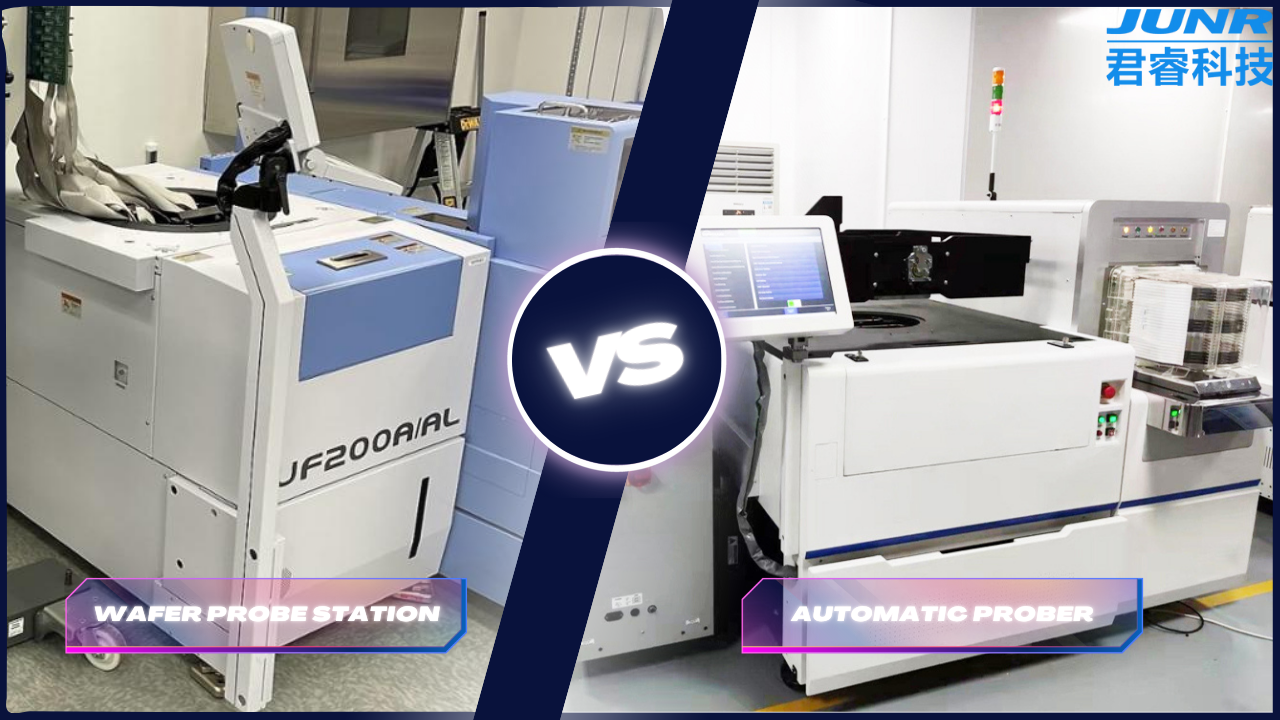

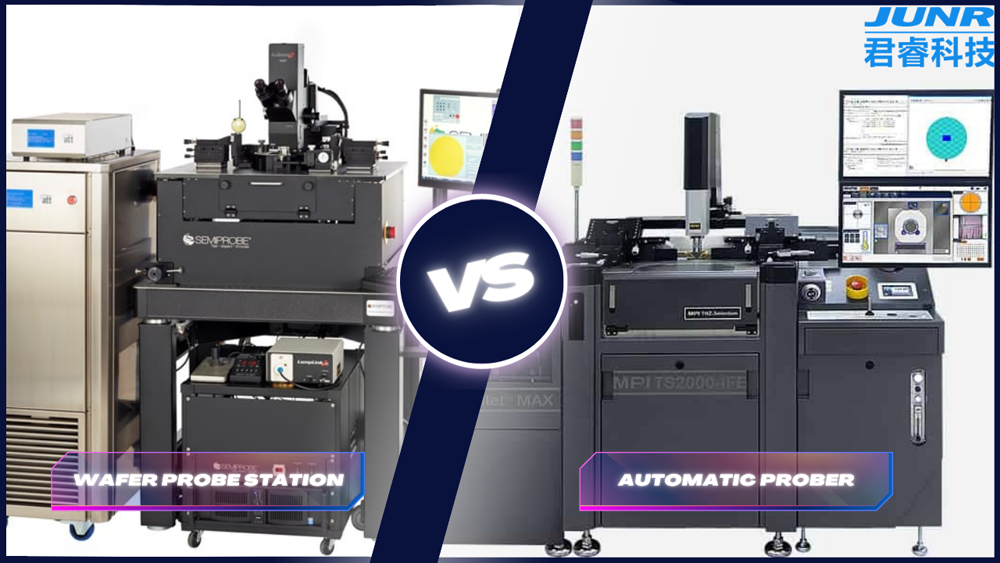

Key Differences Between Wafer Probe Stations and Automatic Probers
Understanding the differences between wafer probe stations and automatic probers is crucial when deciding which system is best suited for specific testing needs. Below are the key distinctions between the two:
| Feature | Wafer Probe Station | Automatic Prober |
| Level of Automation | Manual or semi-automatic | Fully automated |
| Precision | High precision, manually controlled | Ultra-high precision, computer-controlled |
| Throughput | Lower testing speed, suited for R&D | High throughput for mass production |
| Flexibility | Highly customizable for various tests | Pre-configured for specific tests |
| Cost | Lower initial cost, higher labor cost | Higher initial cost, lower labor cost |
1. Level of Automation
The primary difference between these two systems is the level of automation. A wafer probe station often requires manual operation, where an engineer manually positions the probes and adjusts settings for each wafer or test point. This semi-manual approach provides greater control and flexibility, making it ideal for environments where custom testing setups or varying test points are required. However, it limits the speed of testing, making it less suitable for high-volume production.
In contrast, an automatic prober is fully automated, meaning it can handle wafer loading, probe alignment, and testing without the need for human intervention. The automation significantly increases the speed and accuracy of testing, allowing manufacturers to process large volumes of wafers with minimal downtime. This makes automatic probers ideal for use in production fabs, where consistency and speed are key factors.
2. Precision and Accuracy
While both wafer probe stations and automatic probers offer high levels of precision, the degree of control differs. A wafer probe station relies on the operator’s expertise to manually position probes on the wafer, which, while accurate, may not reach the same level of precision as a fully automated system.
On the other hand, an automatic prober uses advanced positioning systems, such as laser-guided alignment or machine vision technology, to place probes with sub-micron accuracy. This ensures consistency across large batches of wafers, reducing the risk of human error.
3. Speed and Throughput
Another significant difference is the speed at which testing can be conducted. A wafer probe station is typically slower due to the manual or semi-manual nature of the testing process. This slower speed makes it more suitable for R&D, small-scale production, or situations where customized testing is required.
An automatic prober, however, excels in high-throughput environments. Its ability to automate every step of the testing process—from wafer loading to probe placement—means it can test hundreds or even thousands of wafers in the time it would take a manual system to complete a fraction of that. This is a critical factor in large-scale manufacturing environments where time is of the essence.
4. Flexibility and Customization
Wafer probe stations offer a high degree of flexibility, allowing operators to manually adjust probe placement and settings for different types of tests. This makes them ideal for research labs where various test setups are needed, or for scenarios where highly specific or non-standard testing is required.
In contrast, automatic probers are typically pre-configured for specific types of tests and are optimized for high-volume, repeatable processes. While they may offer some level of customization, their main advantage is efficiency in performing standardized testing procedures.
5. Cost and Investment
Cost is another key differentiator. A wafer probe station generally has a lower initial cost compared to an automatic prober, but it requires more labor and time for operation, which can increase overall costs in large-scale operations. This makes it a cost-effective solution for smaller businesses or R&D departments that do not need the speed and efficiency of a fully automated system.
In contrast, an automatic prober involves a higher upfront investment but pays off in environments where labor costs are high and speed is critical. The automation reduces the need for manual operation, which can significantly lower labor costs over time and improve the overall return on investment (ROI) in mass production settings.
Advantages of Using a Wafer Probe Station
While wafer probe stations may not offer the same level of automation as automatic probers, they have distinct advantages that make them suitable for various testing environments, particularly in research and development. Below are some of the key benefits of using a wafer probe station:
Cost Efficiency for Small-Scale Testing
- • Wafer probe stations are significantly less expensive than fully automated probers, making them ideal for small businesses, research labs, or any organization that conducts low- to medium-volume testing.
- • The initial investment is lower, which is a major factor for companies not involved in large-scale production.
High Customization and Control
- • Wafer probe stations allow for precise manual control over probe placement and test configuration. This flexibility makes them invaluable for R&D applications, where tests may need to be customized for specific wafers or experimental setups.
- • Engineers can easily adjust the setup to test various parameters, such as specific points on a wafer, varying temperature conditions, or different electrical properties.
Ideal for R&D and Failure Analysis
- • Wafer probe stations are particularly suited for research and development environments. They provide a high level of control that allows for iterative testing, a process often required in experimental research.
- • They are also widely used in failure analysis to identify defects in wafers or ICs, where precision and customization are more important than speed.
Advantages of Using an Automatic Prober
Automatic probers offer distinct advantages in large-scale semiconductor production environments, particularly where speed, precision, and consistency are critical. Here are some of the key benefits:
Optimized for High-Volume Production
- • Automatic probers are specifically designed for high-throughput environments. They can test thousands of wafers in a short period, making them the go-to choice for semiconductor fabs that need to process large volumes of wafers efficiently.
- • The automation reduces the amount of time required to set up and execute tests, providing significant time savings over manual systems.
Consistency and Repeatability
- • One of the major benefits of automatic probers is their ability to perform tests with extreme precision and repeatability. The automated alignment systems ensure that probes are placed accurately on the wafer every time, reducing the potential for human error.
- • This consistency is critical for maintaining high-quality standards in mass production environments.
Reduced Labor Costs
- • By automating the testing process, automatic probers reduce the need for skilled labor. Once the machine is set up, it can perform testing with minimal oversight, freeing up personnel to focus on other tasks.
- • Over time, this reduction in labor requirements translates into cost savings, especially in high-wage regions.
Integration with Automated Production Lines
- • Automatic probers can be integrated into fully automated semiconductor production lines, allowing for seamless transitions between different stages of the fabrication and testing process. This integration reduces downtime and increases overall production efficiency.
When to Use a Wafer Probe Station vs. an Automatic Prober
The decision to use a wafer probe station or an automatic prober depends on several key factors, including the scale of operations, budget, and the specific needs of the testing environment. Below is a comparison to help determine which system is most appropriate for different scenarios:
| Criteria | Wafer Probe Station | Automatic Prober |
| Volume of Testing | Ideal for low- to medium-volume testing | Best for high-volume production environments |
| Level of Customization Needed | Highly customizable for experimental setups | Limited customization, optimized for repeatable tasks |
| Budget | Lower initial investment, but higher labor costs | Higher initial investment, but lower ongoing labor costs |
| Speed of Testing | Slower due to manual or semi-manual operation | Much faster, fully automated testing |
| Type of Environment | Best suited for R&D, failure analysis, and prototyping | Best for production fabs requiring high throughput |
| Flexibility | Flexible, can adjust to varied testing needs | Pre-configured, less flexible but highly efficient |
Scenarios for Using a Wafer Probe Station:
- Research & Development: For environments requiring flexible, customizable testing setups.
- Prototyping: Ideal for companies working on new semiconductor designs or early-stage development.
- Failure Analysis: Useful for engineers investigating defects or irregularities in wafers.
Scenarios for Using an Automatic Prober:
- Mass Production: Best for semiconductor fabs that need to test a high volume of wafers consistently.
- Automated Testing Environments: Suitable for companies looking to reduce labor costs and improve operational efficiency.
- Time-Sensitive Operations: Excellent for companies needing fast turnaround times in their testing process.
Conclusion
The choice between a wafer probe station and an automatic prober ultimately depends on the specific needs of the semiconductor testing process. Wafer probe stations are perfect for environments that require high levels of customization, precision, and manual control, such as R&D labs and low-volume testing scenarios. In contrast, automatic probers are indispensable in large-scale manufacturing environments where speed, consistency, and automation are key to maintaining efficiency and reducing costs.
In summary, businesses and labs should consider the following when making a decision:
- Wafer probe stations are best suited for research, prototyping, and custom test setups, where flexibility and control are prioritized over speed.
- Automatic probers are the preferred choice for high-volume production, offering faster throughput, greater consistency, and reduced labor costs.
By understanding these key differences, semiconductor professionals can select the appropriate tool for their unique testing needs, ensuring both operational efficiency and testing accuracy.
