Custom Probe Cards : Tailored Solutions for Advanced Semiconductor Testing

Custom probe cards are specifically designed to address unique probing challenges, offering tailor-made solutions that standard models cannot provide. These custom cards are invaluable in scenarios where the wafer’s dimensions, testing environment, or required test conditions diverge from the norm. For example, testing devices in extreme temperatures or handling very high current levels necessitate precise designs that ensure accurate contact and signal transmission.

Compared to standard probe cards, which are typically manufactured in large quantities and serve general-purpose applications, custom probe cards are individually designed to cater to specific customer requirements. Standard cards may not be suitable for use on non-standard wafer probe stations, special test heads, or test environments that involve extreme conditions. Customization can ensure that the probe card fits seamlessly into these specialized setups, providing optimal performance.

What Can Be Customized in Probe Cards?

Customization in probe cards covers a wide range of elements, all aimed at ensuring optimal test accuracy and efficiency. The following components and features can be tailored:

1. 1. Probe Cards for Non-Standard Probe Stations and Mounts
   Custom probe cards can be designed to work with specific, non-standard wafer probe stations or test heads. Some advanced probe stations or XYZ manipulators require bespoke probe cards that do not rely on conventional probe card holders. This customization allows probe cards to fit seamlessly into test setups that might otherwise be incompatible with standard solutions.

2. 2. Design for Extreme Conditions
   Some semiconductor testing scenarios demand performance in extreme environments, such as high temperatures, high currents, or high voltages. In these cases, probe cards can be designed to withstand harsh conditions while maintaining reliable contact and accuracy. For example, probe cards can be equipped with specialized materials and insulation techniques to handle temperature ranges from cryogenic levels to over 200°C, or with enhanced current-carrying capabilities for high-power testing.

3. 3. Specialized PCB Layouts
   The design of the Printed Circuit Board (PCB) in a custom probe card is crucial. Custom layouts can be created to meet specific electrical or mechanical needs, such as those required for high-frequency testing or for incorporating more complex probe configurations. By optimizing the PCB layout, probe cards can improve signal integrity, reduce noise, and enhance the overall test quality.

The Role of PCB Design in Custom Probe Cards

The design of the PCB in a custom probe card is at the heart of the entire testing process. A well-designed PCB enables precise electrical contact between the probes and the device under test (DUT), ensuring accurate test results. The layout of the PCB dictates the overall performance of the probe card, affecting everything from signal integrity to thermal management.

Key Considerations in PCB Materials and Layers

The choice of PCB material and layer configuration is critical when designing custom probe cards. Here are the primary factors to consider:

• Material Selection: The choice of material impacts the probe card’s durability and performance. Common materials include:

  • FR4: A standard, cost-effective material used for most probe cards.
  • Rogers: Offers higher performance for high-frequency applications, especially in RF testing.
  • Polyimide: Known for its flexibility and ability to handle extreme temperatures.
  • Nelco: A high-performance material suitable for high-frequency, high-speed applications.

• Layer Count: Depending on the complexity of the probe card design, the PCB can have anywhere from a single layer to more than 40 layers. Multi-layer designs are often necessary for complex signal routing and to minimize signal loss over long distances.

• Thermal Management: The PCB must also be designed to handle heat dissipation, especially in high-current or high-temperature applications. Materials with low thermal resistance and the inclusion of heat sinks or heat spreaders are common solutions in these cases.

Advanced In-House Design Modeling Software

Advanced PCB design modeling software is used to optimize the layout and simulate the behavior of the probe card before it is physically produced. These tools enable rapid prototyping and allow for quick iterations, significantly reducing development time. They also ensure that the final design adheres to strict electrical and mechanical specifications, thereby minimizing the likelihood of errors during production. This software is particularly useful for customers who require fast turnarounds on custom solutions.

Benefits of Using Your Own PCB in Custom Probe Cards

Opting to design and manufacture a probe card using your own PCB offers several key advantages. Many companies choose this route for the additional control it provides over the testing process and the quality of the results. Here are the key benefits:

1. 1. Enhanced Control Over the Test Process
   By providing your own PCB, you can integrate your specific electronic designs and maintain control over how the test is performed. This approach ensures that the probe card aligns with your existing systems and testing methodologies, offering a more customized and precise solution. It also enables easier modification of the test parameters without relying on a third-party design.

2. 2. Reduced Noise and Improved Accuracy
   One significant advantage of using your own PCB is the ability to reduce signal noise. By positioning test components closer to the DUT and using shorter cables and connections, you can significantly lower the resistance and interference introduced by longer wires. This results in cleaner signals, better test accuracy, and faster processing times.

3. 3. Circuit Optimization
   Custom PCBs allow you to position the test components in an optimal arrangement. You can tailor the layout to place the probes closer to the DUT, improving signal strength and reliability. Additionally, this closer proximity enables better circuit optimization, reducing the chances of cross-talk, signal loss, or power dissipation.

Design and Manufacturing Process for Custom Probe Cards

The design and manufacturing process for custom probe cards involves several key stages that require precision, careful planning, and technical expertise. Custom probe cards are typically developed for specific testing requirements, meaning that each step must be tailored to meet the customer's unique needs. Below is an overview of the process from concept to final product.

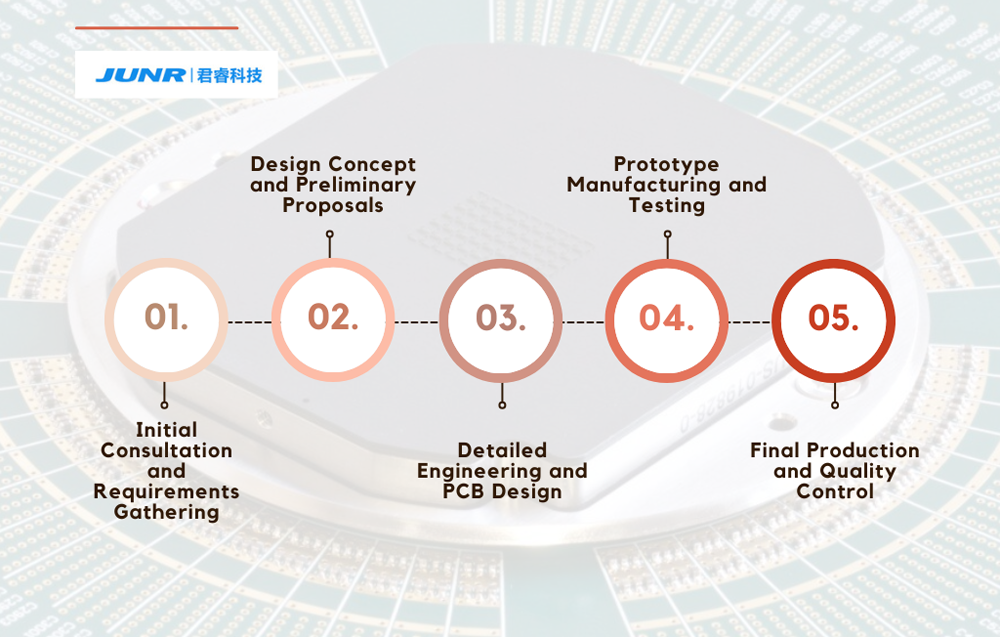

Step-by-Step Process

1. 1. Initial Consultation and Requirements Gathering
   The first step is a comprehensive discussion between the client and the probe card design team. During this phase, the customer outlines their requirements, including the type of device to be tested, the testing environment (e.g., high voltage, extreme temperature), and any other specific conditions (e.g., use with non-standard wafer probe stations or XYZ manipulators). This stage is critical as it ensures the final design aligns with the exact needs of the client.

2. 2. Design Concept and Preliminary Proposals
   Based on the initial requirements, the design team drafts preliminary proposals that include an outline of the probe card’s structure, material specifications, and any custom features. This is where the choice of PCB layout, probe types (e.g., cantilever or vertical), and other design parameters are decided. Feedback from the client is integral at this stage to ensure that the concept meets expectations.

3. 3. Detailed Engineering and PCB Design
   After the concept is approved, the detailed engineering phase begins. Engineers create detailed schematics for the probe card's PCB and its layout. This stage involves selecting appropriate materials (e.g., FR4, Polyimide, Rogers) and finalizing the number of layers, thermal management strategies, and component placements. Specialized in-house design software simulates electrical performance and signal integrity to ensure the probe card will function optimally under the specified testing conditions.

4. 4. Prototype Manufacturing and Testing
   Once the design is finalized, a prototype is fabricated. This prototype undergoes rigorous testing to validate its performance in real-world conditions. The testing phase includes checking electrical connectivity, probe alignment, durability, and thermal tolerance. Any necessary adjustments are made to improve performance before proceeding to full-scale production.

5. 5. Final Production and Quality Control
   After successful prototyping and validation, the final version of the custom probe card is manufactured. This involves sourcing high-quality materials, precise PCB fabrication, and assembly. Throughout the production process, quality control is implemented at each stage, ensuring that the finished product meets the required specifications. The final probe card is then shipped to the customer, along with documentation for installation and usage.

Timeline, Costs, and Turnaround

The timeline for designing and manufacturing custom probe cards typically ranges from a few weeks to a few months, depending on the complexity of the design and the testing conditions. The initial consultation and design phase usually take 2 to 4 weeks, while prototyping and final production may take an additional 4 to 6 weeks.

Costs vary significantly depending on the customization level, materials, and complexity. A basic custom probe card could cost a few thousand dollars, while more complex designs—such as those requiring high-frequency materials or extreme-temperature tolerances—can run into tens of thousands of dollars. Fast turnaround times can be achieved with advanced design tools and efficient manufacturing processes.

Ensuring Precision and Reliability

The manufacturing process for custom probe cards ensures precision through the use of advanced tools and highly skilled personnel. Key quality checks throughout the process—including testing for probe alignment, signal integrity, and electrical performance—guarantee the final product is reliable and meets the strict requirements of the customer.

Types of Custom Probe Cards

There are several types of custom probe cards, each designed to address specific testing needs in the semiconductor industry. The most common types include:

1. 1. Custom Cantilever Probe Cards

   • Design: Cantilever probe cards are one of the most widely used types in semiconductor testing. These cards feature a flexible, cantilevered structure that allows the probes to be mounted on a spring mechanism, providing high precision and minimal wear.
   • Applications: They are ideal for testing devices with fine-pitch pads and are commonly used in applications such as wafer testing and in-situ monitoring during production. Custom cantilever cards can be designed for both high-frequency and high-voltage testing environments.

2. 2. Custom VCT Vertical Probe Cards

   • Design: VCT (Vertical Cantilever Technology) probe cards are designed for applications where probe alignment needs to be manually adjusted. These cards offer excellent flexibility and are suitable for both single-die and wafer testing.
   • Applications: VCT probe cards are widely used in environments where high-precision testing is required, such as in research and development (R&D) settings or for testing complex, high-frequency semiconductor devices.

3. 3. Custom Probe Cards for XYZ Manipulators

   • Design: These probe cards are tailored to fit specialized XYZ manipulators, allowing precise and adjustable movement of the probe card during testing. The card design ensures that it fits seamlessly with the manipulator’s mount and that the probes are positioned correctly.
   • Applications: XYZ manipulator-compatible probe cards are commonly used in environments where automated probing is essential, such as in high-throughput testing environments or for testing large, complex wafers.

Conclusion

Custom probe cards are essential for semiconductor testing, particularly when standard solutions do not meet the requirements of specialized applications. They provide tailored solutions for extreme conditions, unique wafer configurations, and high-precision testing needs. By working closely with experts in the field, companies can achieve more accurate test results, reduce noise, and optimize circuit performance.

As the semiconductor industry continues to evolve, the demand for custom probe cards will only grow. Technological advances in materials, PCB design, and testing methodologies will continue to drive innovation in custom solutions, ensuring that probe cards remain a critical component of semiconductor testing for years to come.
