Wafer size is a fundamental consideration in semiconductor manufacturing, influencing the overall production process, efficiency, and cost structure. In the semiconductor industry, wafers serve as the base material for integrated circuits (ICs), which are essential for a variety of electronic devices. The size of these wafers significantly affects yield rates, equipment selection, and the scalability of production.

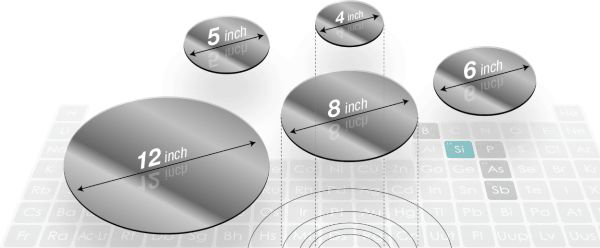

Historically, the semiconductor industry transitioned from smaller wafer sizes like 4-inch and 6-inch to the 8-inch wafer, and more recently, to 12-inch wafers. The shift towards larger wafers was driven by the need for higher production volumes, improved performance, and cost reduction per chip. 12-inch wafers offer a clear advantage in these areas, making them a preferred choice in advanced manufacturing processes, but 8-inch wafers are still widely used for legacy and specialized applications.
Product Overview: 8-Inch Wafer
Physical Characteristics and Dimensions
An 8-inch wafer, also known as a 200mm wafer, has a diameter of 200 millimeters (approximately 7.87 inches). The thickness typically ranges from 0.5 mm to 0.8 mm, depending on the wafer’s grade and intended use. These wafers are often thinner for advanced applications where precision and fine-tuning are critical.
Key Features of 8-Inch Wafers in Semiconductor Production
- Cost-Effective for Low-Volume Production: 8-inch wafers are ideal for specialized, low-volume production runs. The costs associated with the production of 8-inch wafers are relatively lower compared to 12-inch wafers, making them suitable for niche applications and older semiconductor technologies.
- Flexibility for Older Equipment: Many semiconductor manufacturers still operate legacy equipment that is designed to process 8-inch wafers. This allows companies to utilize existing infrastructure without significant capital investment in upgrading to 12-inch wafer-compatible tools.
- Established Manufacturing Techniques: The 8-inch wafer size has been widely used for decades, leading to well-established and refined manufacturing techniques, ensuring reliable production processes.
Common Applications and Industries Using 8-Inch Wafers
- Automotive Electronics: Many automotive applications, such as sensors, power devices, and microcontrollers, continue to rely on 8-inch wafers due to the more mature fabrication processes that cater to these specific components.
- Consumer Electronics: Older consumer electronics products, such as some types of LED displays, power management ICs, and audio components, are often manufactured using 8-inch wafers.
- Legacy Technologies: Some industries still use older semiconductor technologies, including 8-inch wafers, because of their established performance metrics and low cost.
Equipment Compatibility for Processing 8-Inch Wafers
- Etching and Deposition Tools: Standard etching and deposition equipment for 8-inch wafers is widely available, and many manufacturers already have this equipment in place.
- Photolithography Systems: Photolithography systems designed for 8-inch wafers are commonly available, and many are suitable for sub-100nm processes, albeit less capable than newer systems designed for larger wafers.
- Testing and Packaging: Testing and packaging equipment also supports 8-inch wafers, with existing tools ensuring compatibility and efficient handling.
Product Overview: 12-Inch Wafer
Physical Characteristics and Dimensions
A 12-inch wafer, or 300mm wafer, has a diameter of 300 millimeters (approximately 11.81 inches). These wafers are significantly larger than 8-inch wafers, with thicknesses typically ranging from 0.75 mm to 1 mm. The larger size allows for the production of more chips per wafer, which improves yield and cost efficiency.
Key Features of 12-Inch Wafers in Semiconductor Production
- Higher Yield and Productivity: 12-inch wafers can accommodate more die, or individual chips, per wafer than 8-inch wafers. This means that for high-volume production, manufacturers can achieve lower cost per chip. This advantage is especially significant in the production of memory chips, processors, and other high-demand components.
- Advanced Semiconductor Manufacturing: 12-inch wafers are used for cutting-edge processes in the semiconductor industry, including those required for advanced logic circuits and high-density memory chips. The size of the wafer makes it ideal for modern fabrication techniques, which often involve smaller feature sizes and more complex architectures.
- Long-Term Cost Efficiency: Although the initial cost of equipment and materials for 12-inch wafers can be higher, the long-term cost-per-chip reduction, due to higher yields, makes them a more cost-efficient option for large-scale production.
Common Applications and Industries Using 12-Inch Wafers
- High-Performance Computing (HPC): 12-inch wafers are frequently used in the production of processors and other components for high-performance computing applications, such as servers and data centers.
- Memory Chips: DRAM and NAND flash memory manufacturers have adopted 12-inch wafers to maximize production efficiency and reduce the overall cost per chip.
- Consumer Electronics: As the demand for mobile devices, smart devices, and personal computers continues to grow, 12-inch wafers are becoming increasingly important for producing the components that power these products.
Equipment Compatibility for Processing 12-Inch Wafers
- Etching and Deposition Tools: Advanced etching and deposition systems are designed to handle 12-inch wafers, enabling finer precision and higher throughput. These systems require high-capacity handling and precise alignment capabilities.
- Photolithography Systems: Cutting-edge photolithography tools, such as extreme ultraviolet (EUV) lithography, are essential for processing 12-inch wafers, especially at smaller nodes, often below 10nm.
- Test Equipment and Packaging: Testing systems for 12-inch wafers are sophisticated and designed for high throughput, often featuring automatic wafer handling systems to improve efficiency.
Key Product Differences: 8-Inch vs. 12-Inch Wafer
1. Size and Yield: How Wafer Size Impacts Production Yield and Cost Efficiency
The size of a wafer plays a crucial role in determining both production yield and cost efficiency. Larger wafers, such as the 12-inch wafer, can accommodate more individual die (chips) per wafer, leading to higher yields. For example, a 12-inch wafer typically holds 2.25 times more die than an 8-inch wafer. This significant increase in die count directly contributes to a lower cost per chip, making the 12-inch wafer more advantageous for high-volume semiconductor manufacturing.
However, yield is not just about the number of chips on a wafer; it also depends on the quality of the manufacturing process. With 12-inch wafers, defects become more costly as their larger surface area means more potential points of failure. In contrast, the smaller 8-inch wafer offers a more controlled production environment, which can lead to higher yields for specific processes where quality is paramount.
2. Production Capacity: Comparative Production Volumes and Throughput
Production capacity is one of the most impactful differences between 8-inch and 12-inch wafers. The 12-inch wafer provides a higher production volume per wafer, meaning that for the same production cycle, more chips can be produced. This translates into improved throughput for semiconductor fabs that focus on mass production.
In practice, using 12-inch wafers allows manufacturers to scale up production without proportional increases in production time, as larger wafers require fewer steps to process per unit area. On the other hand, 8-inch wafers are typically used in smaller-scale or more specialized runs, where the priority is not necessarily volume, but precision and control over the manufacturing process.
3. Processing Requirements: Differences in Equipment and Technology for Handling 8-Inch vs. 12-Inch Wafers
The shift from 8-inch to 12-inch wafers is not just about changing the wafer size—it's about a transformation in processing technology. While 8-inch wafer processing systems are well-established, equipment designed for 12-inch wafers involves more sophisticated technology.
8-Inch Wafer Equipment: Legacy tools for 8-inch wafers, such as etching, deposition, and photolithography systems, are generally less expensive and require lower capital investment. However, these systems have limitations when scaling to more advanced, smaller process nodes (such as 7nm or below).
12-Inch Wafer Equipment: Processing equipment for 12-inch wafers is more expensive due to its complexity. These systems are built for larger throughputs and advanced lithography technologies (e.g., extreme ultraviolet, EUV). They also require larger cleanroom environments and more precise wafer handling capabilities.
Key Equipment Differences:
| Equipment Type | 8-Inch Wafer | 12-Inch Wafer |
|---|---|---|
| Etching Systems | Standard, low-cost systems | High-throughput, complex systems |
| Deposition Tools | Suitable for older technologies | Advanced techniques, higher capacity |
| Photolithography | Older systems, lower resolution | Latest EUV, high-resolution |
| Wafer Handling | Manual or semi-automatic handling | Fully automated, high precision |
4. Cost Implications: Cost Factors in Wafer Production, Including Material Costs and Processing Overhead
Cost remains one of the most critical factors in wafer size selection. While 12-inch wafers lead to lower cost per chip due to higher yields, the initial cost for producing and processing these wafers is substantially higher.
Material Costs: The raw material cost for both wafer sizes is similar in terms of material per unit area, but 12-inch wafers have a higher base cost due to their larger size.
Processing Overhead: The overhead for processing 12-inch wafers is higher as the specialized equipment needed for their fabrication is more expensive and requires more energy to operate. Additionally, maintenance costs for 12-inch processing systems are typically higher.
Despite these higher initial costs, the reduction in cost per chip for 12-inch wafers (due to the larger number of die) makes them more economically viable for large-scale production.
Choosing the Right Wafer for Your Semiconductor Production Needs
When selecting between 8-inch and 12-inch wafers, several factors must be considered:
Production Volume: If your semiconductor production is focused on high-volume manufacturing, 12-inch wafers are often the preferred choice due to the increased number of chips per wafer and the overall cost-effectiveness in mass production.
Technology Node: For advanced manufacturing processes (especially at nodes smaller than 10nm), 12-inch wafers are often required due to their compatibility with cutting-edge photolithography systems.
Equipment Compatibility: If a manufacturer has existing 8-inch wafer processing equipment, transitioning to 12-inch wafers may require significant capital investment. For some companies, it may be more cost-effective to continue using 8-inch wafers, particularly for smaller-scale production or specialized applications.
Product Lifecycles: For companies focused on legacy or niche applications, 8-inch wafers might still be ideal, as these industries typically do not require the latest technology or the higher throughput associated with 12-inch wafers.
Impact on Semiconductor Equipment
1. Overview of the Equipment Needed to Support Each Wafer Size
To process 8-inch wafers, semiconductor manufacturers require equipment that is optimized for the smaller wafer size. These include older etching and deposition tools, photolithography systems, and wafer handling devices.
For 12-inch wafers, manufacturers need equipment that can handle larger, more sensitive wafers, often incorporating advanced technologies like EUV lithography, precision wafer aligners, and fully automated wafer handling systems. The scalability of these systems makes them suitable for high-volume, advanced technology production.
2. Key Considerations for Equipment Procurement
When procuring equipment, semiconductor manufacturers must weigh the ROI for each wafer size:
8-Inch Wafer Equipment: Generally has a lower capital expenditure but may become outdated for cutting-edge production. The ROI is favorable for lower volume, less complex processes, and industries that do not require the latest technologies.
12-Inch Wafer Equipment: While initial investments are higher, the long-term ROI can be significant due to improved yields and throughput. Equipment designed for 12-inch wafers offers scalability and is future-proof for newer technologies.
Conclusion
Both 8-inch and 12-inch wafers play vital roles in semiconductor manufacturing, each suited for different types of production. The 8-inch wafer is ideal for legacy processes and specialized, low-volume production, while the 12-inch wafer is the go-to for high-volume, advanced manufacturing applications.
For equipment purchasers, the decision between 8-inch and 12-inch wafers hinges on several key factors: production volume, technology requirements, and budget. Understanding the nuances of each wafer size will enable manufacturers to make more informed decisions that align with their production needs, technological capabilities, and long-term goals.
