1. Introduction: The Role of Probe Cards in Wafer Testing
In semiconductor manufacturing, wafer probing is a critical step that bridges the gap between fabrication and packaging. Before chips are cut and encapsulated, each die on the wafer must be electrically tested to ensure performance and yield consistency. This is where the probe card plays a central role.
A probe card acts as the electrical interface between the automatic test equipment (ATE) and the wafer’s contact pads. It enables accurate and repeatable testing of thousands of microscopic circuits without physically damaging the wafer. Over the years, probe card technology has evolved significantly — from the early cantilever-style designs to today’s vertical and MEMS-based architectures.
Choosing between a cantilever and vertical probe card depends on the wafer’s pad pitch, device type, test requirements, and cost considerations. Understanding the distinctions between these two designs helps fabs optimize test throughput, extend equipment lifetime, and reduce overall cost of ownership.
2. What Is a Cantilever Probe Card?

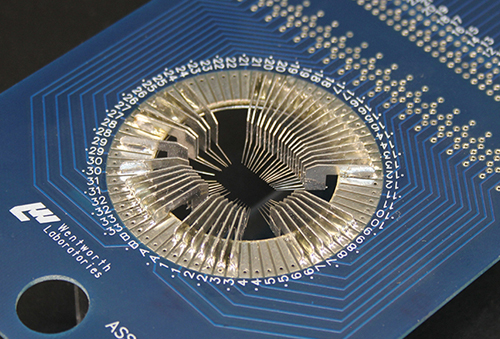

A cantilever probe card is the traditional and most widely recognized type of wafer probe interface. It features a set of fine metal needles (probes) arranged around the periphery of the wafer area, extending inward like the spokes of a wheel. Each needle makes contact with a specific test pad on the wafer.
Design & Structure
-
Probe needles: Made of tungsten or beryllium copper, typically inclined at a 6–12° angle.
-
Contact pattern: Probes radiate from the edges toward the wafer center.
-
Card substrate: Usually ceramic or epoxy glass board that connects to the tester.
Working Principle
When the wafer is raised by the prober’s chuck, the needle tips scrub slightly across the pad surface, removing oxide layers and ensuring a clean electrical connection. This mechanical scrub action is what makes cantilever probes highly reliable for analog and power device testing.
Advantages
-
Simpler and more cost-effective design.
-
Easier to repair or replace individual needles.
-
Excellent for low to medium pin count devices (≤ 500 pins).
-
Well-suited for larger pad pitches (≥ 80 µm).
Limitations
-
Contact planarity becomes difficult to maintain as pin count increases.
-
Not ideal for fine-pitch (< 60 µm) or high-speed digital applications.
-
Physical needle scrub may wear down sensitive pad metallization.
Typical Applications
-
Power devices (MOSFET, IGBT)
-
Analog ICs
-
Discrete components
-
Sensor wafers
3. What Is a Vertical Probe Card?
As semiconductor devices evolved toward higher pin counts and finer pad pitches, the vertical probe card was developed to overcome the physical limitations of cantilever-style designs.

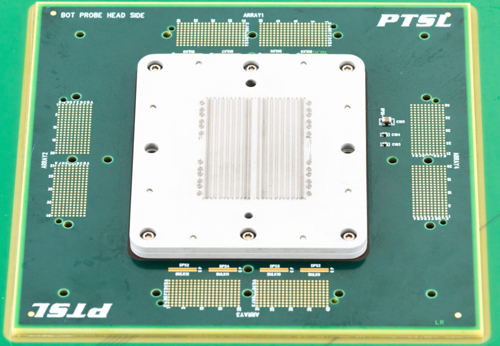

In a vertical probe card, the probes are mounted perpendicular (vertical) to the wafer surface, arranged in dense arrays that match the device pad layout directly. This allows for simultaneous multi-site testing with excellent planarity and reduced mechanical stress.
Design & Characteristics
-
Probe orientation: Vertical — probes move straight down to contact pads.
-
Contact alignment: High-density array, typically using spring or MEMS-based pins.
-
Electrical path: Shorter and more uniform, improving signal integrity.
Advantages
-
Supports high pin counts (1,000+ pins) with consistent planarity.
-
Enables fine-pitch testing (≤ 40 µm).
-
Reduced pad damage — no lateral scrub motion.
-
Compatible with memory, SoC, and logic devices requiring parallel testing.
-
Better suited for high-volume production environments.
Limitations
-
Higher initial cost and more complex repair process.
-
Longer lead times for design and fabrication.
-
Requires precision alignment and calibration tools.
Typical Applications
-
DRAM and NAND Flash wafers
-
SoC and processor devices
-
High-frequency digital ICs
-
Multi-site wafer testing
4. Technical Performance Comparison
When comparing cantilever and vertical probe cards, their performance characteristics vary across several critical metrics:
| Parameter | Cantilever Probe Card | Vertical Probe Card |
|---|---|---|
| Pin Density | Typically low to medium; suitable for ≤512 pins | High; supports 1,000–10,000+ pins |
| Planarity Control | Moderate; dependent on beam length | Excellent; optimized through vertical alignment |
| Signal Integrity | More prone to crosstalk and signal delay | Superior; shorter path improves signal timing |
| Maintenance | Easier to clean and replace needles | More complex and costly to maintain |
| Cost | Lower initial cost | Higher initial cost but better long-term stability |
Cantilever cards rely on individual metal beams arranged in a radial fashion, making them ideal for low- to mid-pin-count applications. In contrast, vertical probe cards use vertically aligned micro-needles or MEMS structures that allow high-density, low-parasitic signal paths. This difference is pivotal in advanced wafer testing where speed and precision dominate.
In high-frequency or high-pin-count environments (such as logic and DRAM testing), the vertical architecture’s parallel signal routing reduces impedance mismatch and enables consistent contact resistance, enhancing test reliability.
5. Application Scenarios
Each probe card type is optimized for specific wafer testing needs:
-
Cantilever Probe Cards:
-
Used for parametric, analog, and power device testing.
-
Favored in wafer-level burn-in and automotive-grade environments.
-
Excellent for engineering validation and low-volume production where flexibility and lower cost matter.
-
-
Vertical Probe Cards:
-
Designed for high-volume manufacturing (HVM).
-
Preferred in SoC, DRAM, and high-density logic IC testing.
-
Compatible with fine-pitch (<40 μm) and multi-site testing, increasing throughput.
-
As semiconductor technology progresses into sub-5nm nodes, the demand for vertical probe cards rises due to their ability to maintain stable contact force and alignment even under high thermal stress. Nonetheless, cantilever probe cards remain indispensable in legacy process lines and mixed-signal verification.
6. Future Trends and Innovations
The probe card industry is evolving rapidly to meet the growing complexity of wafer-level testing:
-
MEMS Probe Technology:
Vertical probe cards increasingly adopt MEMS-based micro-needle arrays, achieving high uniformity and longer lifetime compared to traditional tungsten tips. -
Hybrid Probe Cards:
New designs merge the cantilever’s cost efficiency with the vertical’s density advantages, supporting mid-pin-count ICs at reduced cost. -
Smart Diagnostics and Predictive Maintenance:
Embedded sensors monitor contact resistance, planarity drift, and thermal stability, enabling AI-driven maintenance scheduling and reducing downtime. -
Sustainability Considerations:
Manufacturers are emphasizing reusable probe substrates, eco-friendly materials, and modular architectures to lower waste and operational costs.
Ultimately, the boundary between cantilever and vertical probe cards continues to blur, driven by heterogeneous integration, 3D ICs, and multi-die testing demands. The future of probe technology lies in adaptability, automation, and precision engineering.
7. Manufacturing and Calibration Considerations
The fabrication and calibration of probe cards—especially cantilever and vertical types—demand meticulous engineering precision.
Manufacturing Techniques:
-
Cantilever Probe Cards are typically built with wire-bonded tungsten needles fixed onto ceramic or epoxy-glass substrates. The probe beams are manually aligned, providing flexibility but introducing variability in beam stiffness and alignment.
-
Vertical Probe Cards, by contrast, often employ micro-fabrication or MEMS techniques to create uniform vertical contacts on multilayer interposers. This ensures precise tip alignment and consistent electrical performance, critical for sub-micron nodes.
Calibration and Testing:
-
Regular planarity calibration is essential to maintain contact consistency.
-
Resistance and leakage testing verify signal integrity and detect probe wear or contamination.
-
Automated probe card analyzers (PCAs) are now integrated into production lines, enabling in-situ calibration and predictive maintenance.
As wafer testing moves toward 5G, AI, and HPC devices, manufacturing tolerances of probe cards must reach micron-level precision. The combination of mechanical stability, thermal resilience, and signal fidelity is now a decisive factor in ensuring test accuracy.
8. Conclusion: Selecting the Right Probe Card
Cantilever probe cards remain the workhorse for traditional and analog applications, offering flexibility and affordability. Meanwhile, vertical probe cards represent the future of advanced node wafer testing, optimized for speed, accuracy, and scalability.
As the semiconductor industry transitions toward heterogeneous integration, chiplets, and 3D stacked architectures, the demand for hybrid or MEMS-enhanced vertical probe cards will continue to expand. Success in this domain depends not just on probe performance, but also on collaboration between probe manufacturers, test engineers, and fab process designers—ensuring every contact counts, both electrically and economically.
