Introduction
High-precision position measurement is a critical requirement in advanced manufacturing, semiconductor equipment, and precision motion control systems. At the core of many interferometric measurement platforms is a highly stable laser source that determines accuracy, repeatability, and long-term system performance.
The ZYGO ZMI 7714 Laser is a well-established laser source designed for use in heterodyne laser interferometry systems, where nanometer-level displacement measurement and long-term stability are required. It is widely deployed in semiconductor lithography tools, precision stages, metrology systems, and advanced industrial equipment.
This article provides a comprehensive and practical explanation of the ZYGO ZMI 7714 Laser, covering its operating principles, technical characteristics, applications, integration considerations, and lifecycle support topics.
What Is the ZYGO ZMI 7714 Laser?

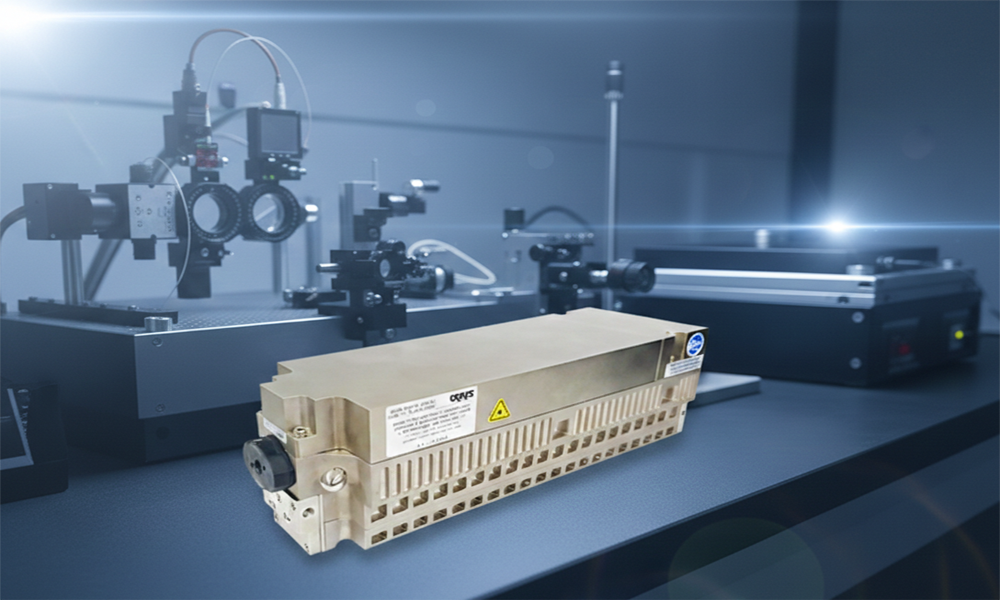

The ZYGO ZMI 7714 is a frequency-stabilized helium-neon (He-Ne) laser source developed for use in ZYGO’s ZMI interferometer systems. It generates two slightly different optical frequencies with orthogonal polarization, enabling heterodyne interferometry for precise displacement and velocity measurements.
Unlike general-purpose laser sources, the ZMI 7714 is engineered specifically for metrology-grade measurement, where optical stability, frequency accuracy, and long-term reliability are more important than raw optical power.
The laser is typically used as part of a complete ZYGO measurement architecture that includes interferometer optics, receivers, and signal processing electronics.
ZYGO ZMI 7714 vs ZMI 7712 vs ZMI 7710 – Model Comparison
Within the ZYGO ZMI 7700 series, the 7710, 7712, and 7714 are all heterodyne He-Ne laser sources designed for precision interferometry. While they share a common optical principle, each model is optimized for different performance requirements and system configurations.
Understanding their differences helps system integrators and equipment owners select the most appropriate laser for accuracy, stability, and long-term operation.
Table : ZYGO ZMI 7714 vs 7712 vs 7710 – Technical Comparison
| Parameter | ZMI 7710 | ZMI 7712 | ZMI 7714 |
|---|---|---|---|
| Laser Type | He-Ne Heterodyne | He-Ne Heterodyne | He-Ne Heterodyne |
| Nominal Wavelength | 632.8 nm | 632.8 nm | 632.8 nm |
| Frequency Offset | ~20 MHz | ~20 MHz | ~20 MHz |
| Frequency Stability | ±2 ppm (typical) | ±1.5 ppm (typical) | ≤ ±1 ppm (typical) |
| Output Power | ~0.8 mW | ~0.9 mW | ~1.0 mW |
| Beam Quality | Standard | Improved | High stability, low noise |
| Warm-up Time | ~30 minutes | ~25 minutes | ~20 minutes |
| Long-Term Drift | Moderate | Low | Very low |
| Typical Application Level | General precision systems | Mid-to-high precision systems | High-end semiconductor & metrology systems |
| Common Use Cases | Legacy tools, general motion | Wafer handling, inspection | Steppers, scanners, advanced lithography |
| Replacement Flexibility | Limited in high-end tools | Moderate | Widely accepted in critical systems |
Note: Specifications represent typical performance ranges used for system comparison. Actual values may vary depending on production batch and operating environment.
How to Choose Between ZMI 7710, 7712, and 7714
● ZMI 7710 is typically found in earlier-generation equipment where ultra-low drift is not critical.
● ZMI 7712 offers improved stability and is often used in mid-level semiconductor and inspection systems.
● ZMI 7714 is optimized for high-precision, long-term stable operation, making it the preferred choice for advanced lithography, precision stages, and critical metrology platforms.
In many modern semiconductor applications, the ZMI 7714 is selected not for higher power, but for its superior frequency stability and lower measurement uncertainty, which directly affects overlay accuracy and yield.
Role of the ZMI 7714 Laser in Interferometric Measurement
Heterodyne Interferometry Explained
The ZMI 7714 operates using a heterodyne principle, where two closely spaced optical frequencies are generated within the same laser cavity. When these frequencies interfere, they produce a beat signal that can be precisely measured.
This approach offers several key advantages:
● Directional displacement detection
● High immunity to intensity fluctuations
● Excellent noise rejection
● Accurate velocity and position measurement
In practical terms, this allows motion systems to be monitored with sub-nanometer resolution, even in demanding industrial environments.

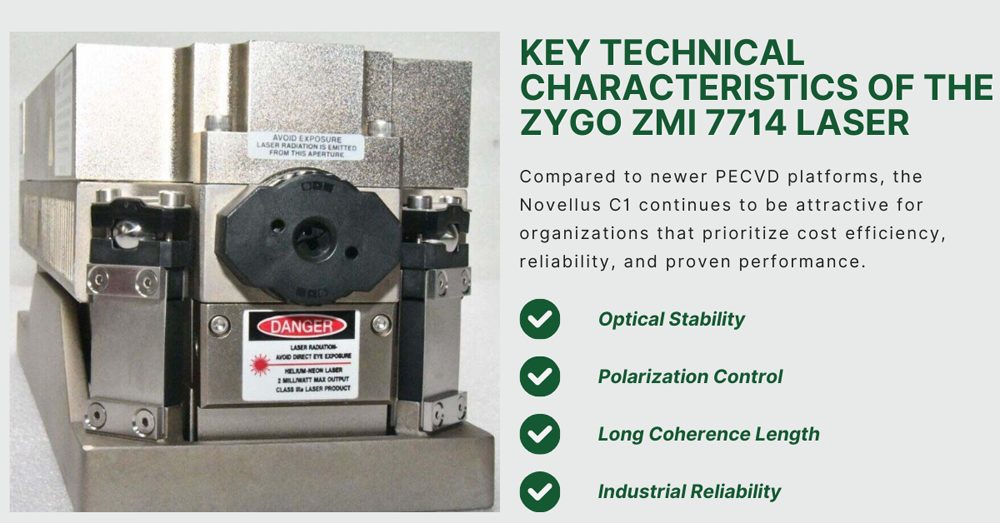

Key Technical Characteristics of the ZYGO ZMI 7714 Laser
While exact specifications may vary slightly depending on system configuration and revision, the ZMI 7714 is known for the following core characteristics:
1. Optical Stability
The laser provides highly stable output frequency and wavelength, which is essential for maintaining measurement accuracy over long periods of operation. Frequency drift is tightly controlled, supporting consistent interferometric scaling.
2. Polarization Control
The output beam consists of two orthogonally polarized frequency components. This polarization separation is fundamental to heterodyne signal detection and contributes to robust phase measurement.
3. Long Coherence Length
The ZMI 7714 supports long optical paths, making it suitable for large-travel stages and multi-axis measurement systems commonly used in semiconductor and precision manufacturing equipment.
4. Industrial Reliability
Designed for continuous operation, the laser is built to withstand thermal variation, vibration, and extended duty cycles typical of production environments.
Typical Applications of the ZYGO ZMI 7714 Laser
The ZMI 7714 Laser is widely used in applications where absolute accuracy and repeatability are non-negotiable.
Semiconductor Manufacturing Equipment
● Wafer stage position measurement
● Lithography alignment and scanning systems
● Inspection and metrology tools
In these systems, even nanometer-level errors can directly impact yield and device performance.
Precision Motion Control Systems
● Linear motor stages
● Air-bearing platforms
● Multi-axis positioning systems
The laser provides real-time feedback for closed-loop control.
Metrology and Calibration Systems
● Coordinate measurement platforms
● Precision calibration benches
● Research and development instruments
Advanced Industrial Automation
● High-accuracy assembly systems
● Optical component alignment
● Flat panel display and optics manufacturing
Lifecycle, Replacement, and Maintenance Considerations
Laser Lifetime
As a He-Ne laser, the ZMI 7714 has a finite operational lifetime. Output power and stability may degrade gradually over time, eventually requiring replacement to maintain measurement integrity.
Replacement vs. System Downtime
In high-value production environments, proactive laser replacement is often preferred over reactive maintenance. Monitoring output performance helps prevent unplanned downtime.
New, Refurbished, and Qualified Supply
Depending on availability and system requirements, users may consider:
● New laser units
● Professionally refurbished lasers
● Tested replacement units with verified performance
Each option must be evaluated based on reliability, compatibility, and support.
Conclusion
The ZYGO ZMI 7714 Laser is a critical component in precision interferometric measurement systems used across semiconductor manufacturing, metrology, and advanced industrial automation. Its stability, accuracy, and reliability enable nanometer-level motion measurement that modern high-precision equipment depends on.
Understanding the laser’s role, technical characteristics, and lifecycle considerations is essential for maintaining system performance and minimizing operational risk. Whether supporting existing tools or planning long-term equipment maintenance, access to reliable laser supply and technical expertise is a key factor in sustained production stability.
As a professional supplier with experience in ZYGO ZMI laser systems, including the ZMI 7714, we support customers with qualified laser sources, system knowledge, and practical service insight—helping ensure precision measurement systems continue to perform as intended over their full operational life.
