Accretech / TSK FP 3000 Prober :Features & Applications

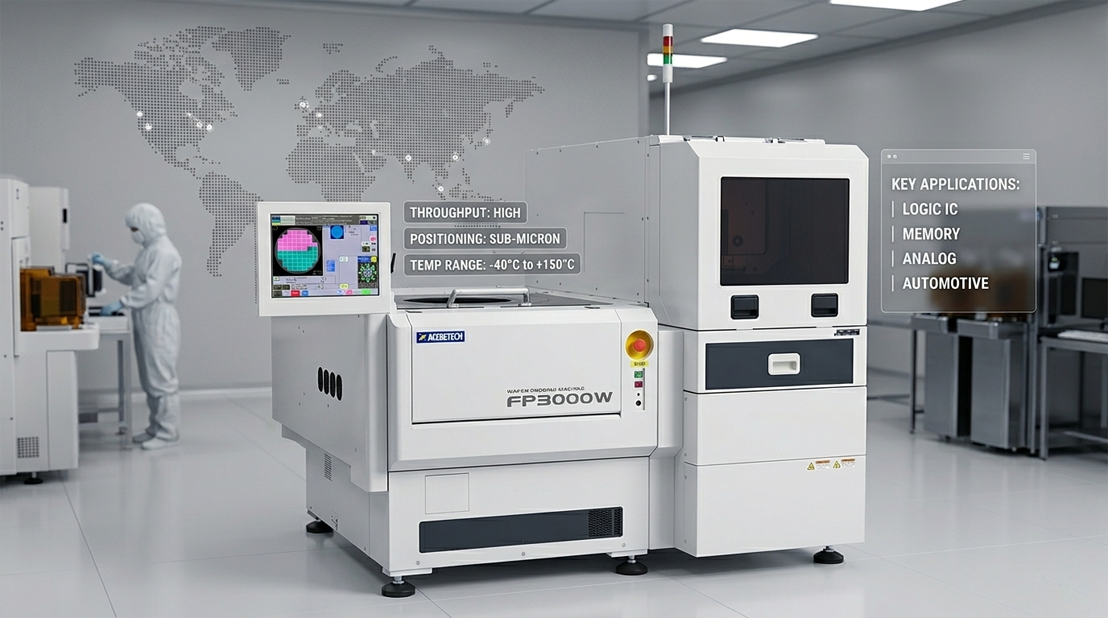

What Is the Accretech / TSK FP 3000 Prober?

The Accretech / TSK FP 3000 Prober is a high-precision automatic wafer probing system designed for semiconductor testing environments. Manufactured by Accretech (also known as Tokyo Seimitsu), this system is widely used in wafer-level electrical testing before dicing and packaging.

It serves as a critical interface between semiconductor wafers and test equipment (ATE), ensuring accurate electrical measurements of integrated circuits at the wafer stage.

The FP 3000 is built on a high-rigidity platform that ensures stability even during high-speed indexing.

Why the FP 3000 Prober Is Widely Used in Semiconductor Testing

The FP 3000 series has become a benchmark in the industry due to its balance of:

• ● High throughput
• ● Exceptional positioning accuracy
• ● Strong compatibility with multiple wafer sizes
• ● Reliable long-term operation in high-volume manufacturing (HVM)

Key Value Proposition:

Stable, repeatable, and high-speed wafer probing for advanced semiconductor nodes

Core Technical Specifications of FP 3000 Prober

While configurations vary, the typical specifications include:

1. Wafer Handling Capability

• ● Wafer sizes: 6-inch, 8-inch, and optional 12-inch (depending on configuration)
• ● Automatic wafer loading system
• ● Cassette-to-cassette operation

2. Positioning Accuracy

• ● Sub-micron alignment precision
• ● Advanced vision alignment system
• ● High repeatability for fine-pitch probing

3. Throughput Performance

• ● Optimized indexing speed
• ● Fast stepping between dies
• ● Reduced test cycle time

4. Chuck System

• ● Temperature-controlled chuck (optional)
• ● Supports thermal testing (-40°C to +150°C typical range)
• ● Vacuum-based wafer holding

5. Probe Card Compatibility

• ● Supports vertical and cantilever probe cards
• ● Compatible with multiple ATE systems

How Does the FP 3000 Prober Work?

The system follows a structured workflow:

1. ● Wafer Loading
   • ● Automatic robotic arm transfers wafer to chuck
2. ● Alignment
   • ● Optical system detects wafer orientation and aligns dies
3. ● Probing
   • ● Probe card makes contact with pads on each die
4. ● Electrical Testing
   • ● ATE performs parametric and functional tests
5. ● Stepping
   • ● System moves to the next die with high precision
6. ● Unloading
   • ● Tested wafer returns to cassette

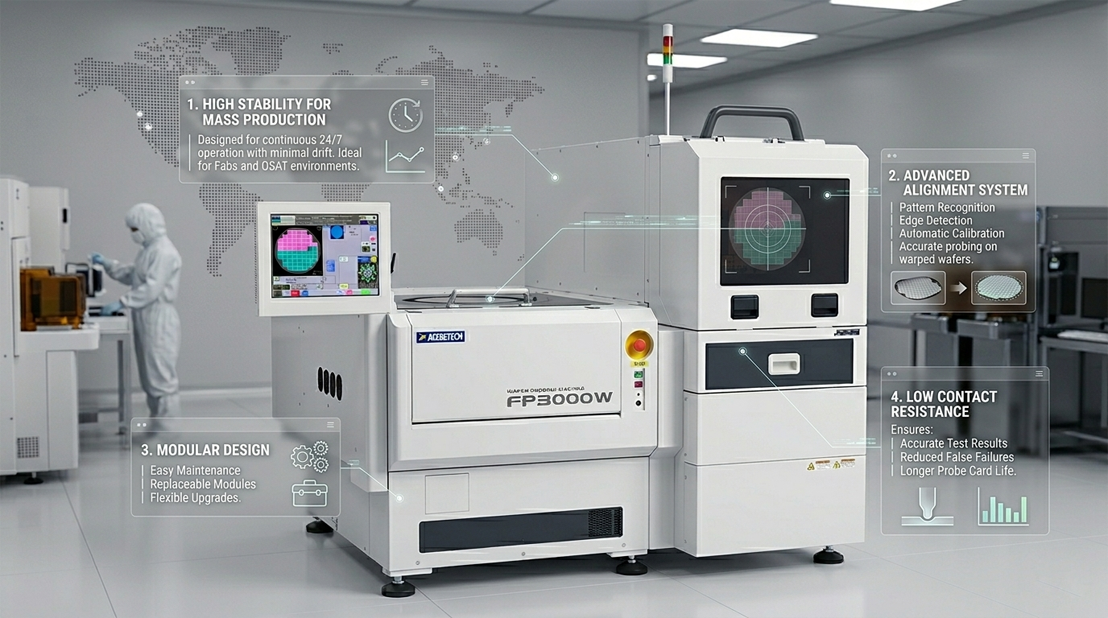

Key Features That Differentiate the FP 3000

1. High Stability for Mass Production

The FP 3000 is designed for continuous 24/7 operation with minimal drift, making it ideal for fabs and OSAT environments.

2. Advanced Alignment System

• ● Pattern recognition
• ● Edge detection
• ● Automatic calibration

This ensures accurate probing even on wafers with slight warpage.

3. Modular Design

• ● Easy maintenance
• ● Replaceable modules
• ● Flexible upgrades

4. Low Contact Resistance

Stable probe contact ensures:

• ● Accurate test results
• ● Reduced false failures
• ● Longer probe card life

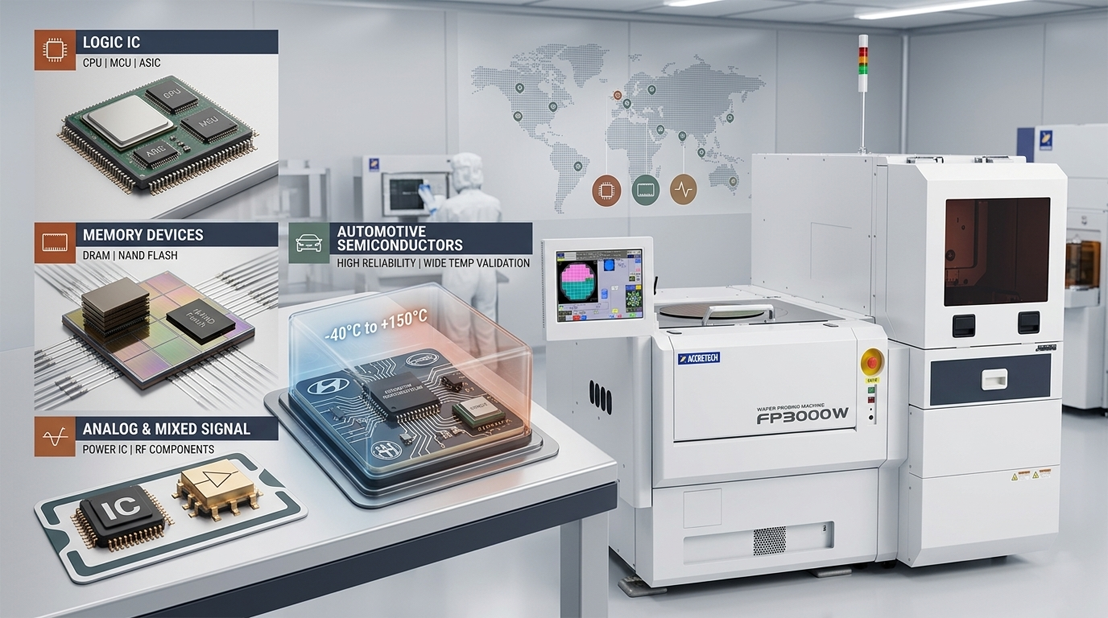

Typical Applications of FP 3000 Prober

The FP 3000 is used across multiple semiconductor segments:

1. Logic IC Testing

• ● CPUs, MCUs, ASICs
• ● High-density probing requirements

2. Memory Devices

• ● DRAM
• ● NAND Flash
• ● High-speed repetitive testing

3. Analog & Mixed Signal

• ● Power ICs
• ● RF components

4. Automotive Semiconductors

• ● High reliability testing
• ● Wide temperature range validation

Common Issues and Maintenance Considerations

Even a robust system like FP 3000 requires proper upkeep.

1. Probe Alignment Drift

• ● Cause: Mechanical wear or calibration loss
• ● Solution: Routine recalibration

2. Chuck Surface Contamination

• ● Affects wafer flatness and contact quality
• ● Requires regular cleaning

3. Vacuum System Issues

• ● Reduced suction leads to wafer instability
• ● Check seals and vacuum lines

4. Electrical Noise

• ● Impacts measurement accuracy
• ● Ensure proper grounding and shielding

Spare Parts and Consumables

To maintain performance, the following parts are frequently replaced:

• ● Probe card interfaces
• ● Vacuum components
• ● Chuck plates
• ● Alignment cameras
• ● Belts and mechanical parts

Reliable spare parts supply is critical to avoid downtime in production lines.

Buying Guide: What to Consider Before Purchasing FP 3000

1. New vs Refurbished Equipment

• ● New: High cost, latest configuration
• ● Refurbished: Cost-effective, faster ROI

2. Configuration Matching

• ● Wafer size compatibility
• ● ATE interface requirements
• ● Temperature testing needs

3. Service Support

• ● Installation
• ● Calibration
• ● Spare parts availability

4. Lead Time

• ● Critical for fabs with tight production schedules

Why FP 3000 Remains Relevant in 2026

Despite newer models entering the market, the FP 3000 remains widely used because:

• ● Proven reliability
• ● Strong global installed base
• ● Availability of parts and expertise
• ● Lower total cost of ownership (TCO)
