In semiconductor manufacturing, wafer handling accuracy and stability directly affect process yield and equipment performance. One key component that often operates quietly in the background—but plays a critical role—is the High Voltage Chuck, more commonly known in the industry as an Electrostatic Chuck (ESC).
From etching and deposition to testing and inspection, High Voltage Chucks have become an essential part of modern semiconductor equipment. This article explains what a High Voltage Chuck is, how it works, where it is used, and what engineers should consider when selecting and maintaining it.
1. What Is a High Voltage Chuck?
A High Voltage Chuck is a wafer-holding system that uses high-voltage electrostatic force to securely clamp a semiconductor wafer during processing.
Unlike mechanical clamps, which rely on physical pressure, a High Voltage Chuck:
● Uses electrical potential to generate attraction
● Holds wafers flat and stable
● Operates reliably under vacuum, high temperature, and plasma conditions
In practice, the term “High Voltage Chuck” usually refers to an Electrostatic Chuck powered by a high-voltage supply, typically ranging from 1 kV to 5 kV, depending on the process and equipment design.
2. How Does a High Voltage Chuck Work?
2.1 Basic Operating Principle
When a high voltage is applied to electrodes embedded inside the chuck:
● A strong electrostatic field is created
● Electrostatic attraction forms between the chuck surface and the wafer
● The wafer is firmly clamped without mechanical contact
The two main electrostatic mechanisms involved are:
● Coulomb force
● Johnsen–Rahbek force (commonly dominant in semiconductor ESCs)
The actual clamping force depends on:
● Applied voltage
● Electrode design
● Dielectric material
● Wafer backside condition
2.2 Typical Structure of a High Voltage Chuck
A standard High Voltage Chuck consists of:
● Ceramic base (Al₂O₃ or AlN)
● Embedded electrodes (monopolar or bipolar)
● High-voltage power supply
● Backside helium (He) cooling channels
● Temperature control paths (heating or cooling)
● Vacuum and sealing system
Each subsystem must work together to ensure stable wafer handling.
3. Why High Voltage Chucks Are Essential in Semiconductor Processes
Modern semiconductor processes impose conditions that traditional mechanical chucks cannot tolerate.
Key challenges include:
● High vacuum environments
● Elevated temperatures
● Reactive gases and plasma
● Rapid thermal cycling
● Extremely tight flatness and alignment requirements
A High Voltage Chuck provides:
● Uniform clamping force
● Minimal particle generation
● Stable wafer positioning
● Compatibility with advanced process nodes
As device dimensions shrink, the importance of wafer flatness and thermal control continues to increase, making High Voltage Chucks the industry standard.

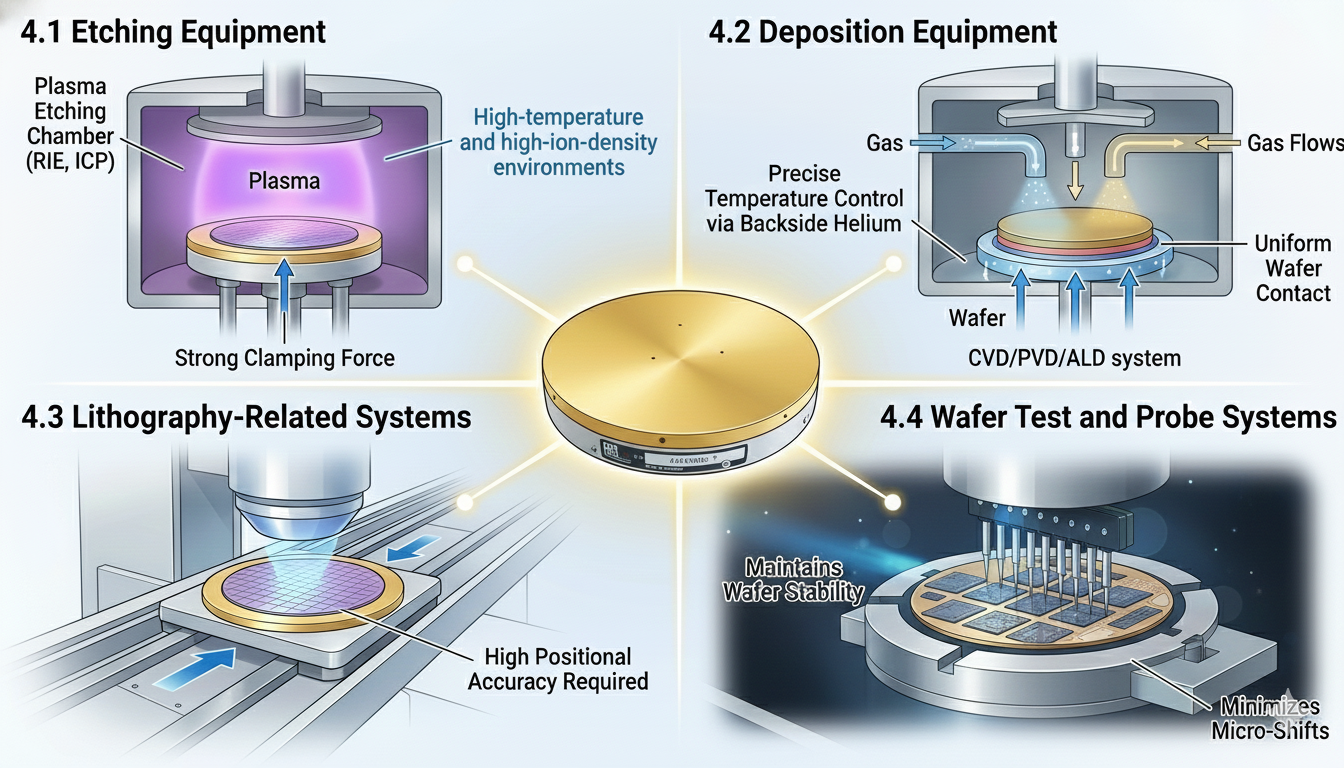

4. Common Applications of High Voltage Chucks
4.1 Etching Equipment
● Plasma etchers (RIE, ICP)
● High-temperature and high-ion-density environments
● Strong clamping force required to prevent wafer movement
4.2 Deposition Equipment
● CVD, PVD, ALD systems
● Precise temperature control via backside helium
● Uniform wafer contact critical for film thickness consistency
4.3 Lithography-Related Systems
● Track systems in specific process steps
● High positional accuracy required
4.4 Wafer Test and Probe Systems
● Maintains wafer stability during electrical testing
● Minimizes micro-shifts under probe contact force
5. Common Failure Modes in High Voltage Chuck Systems
Although High Voltage Chucks are robust, system-level failures do occur.
Typical issues include:
● Surface contamination causing uneven clamping
● Ceramic cracking or erosion
● Seal degradation leading to helium leakage
● Power supply instability
● Excessive residual electrostatic charge
In many cases, the root cause is not the chuck itself, but surrounding components such as seals, gas lines, or power systems.
6. The Role of Sealing and Materials
High Voltage Chucks rely heavily on high-quality sealing to maintain:
● Vacuum integrity
● Backside helium pressure
● Electrical insulation
In high-temperature and chemically aggressive environments, advanced sealing materials such as FFKM O-rings are commonly used to ensure long-term reliability. Seal performance directly affects chuck stability, thermal control, and equipment uptime.
7. Installation and Maintenance Considerations
Proper handling significantly extends chuck lifetime.
Best practices include:
● Cleanroom-grade installation procedures
● Avoiding mechanical shock to ceramic surfaces
● Monitoring clamping voltage trends
● Replacing seals during preventive maintenance
● Cleaning chuck surfaces according to process conditions
Predictive maintenance is generally more effective than reactive replacement.
8. Conclusion
The High Voltage Chuck, or Electrostatic Chuck, is a foundational technology in modern semiconductor manufacturing. While it may not be the most visible part of a tool, its role in maintaining wafer stability under extreme process conditions is critical.
