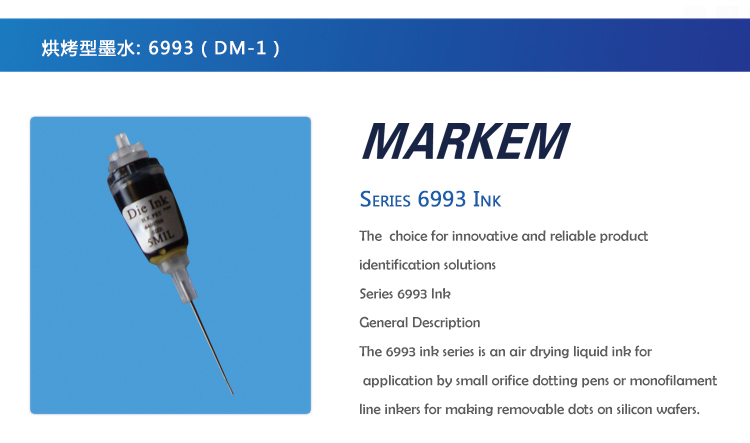

烘烤型墨水:6993(DM-1)
- MARKEM
- SERIES 6993 INK
- The choice for innovative and reliable product
- identification solutions
- Series 6993 Ink
- General Description
- The 6993 ink series is an air drying liquid ink for application by small orifice dotting pens or monofilament line inkers for making removable dots on silicon wafers.

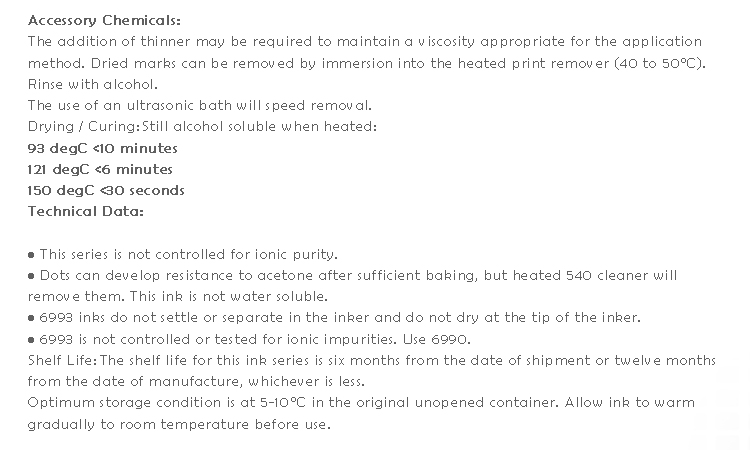

Accessory Chemicals:
The addition of thinner may be required to maintain a viscosity appropriate for the applicationmethod. Dried marks can be removed by immersion into the heated print remover (40 to 50°C).Rinse with alcohol.
The use of an ultrasonic bath willspeed remoy al.
Drying /Curing:Still alcohol soluble when heated:93 degC < 10 minutes
121 degC < 6 minutes
150 degC < 30 seconds
Technical Data:
This series is not controlled for ionic purity.
Dots can develop resistance to acetone after sufficient baking, but heated 540 cleaner willremove them,This ink is not water soluble.
6993 inks do not settle or separate in the inker and do not dry at the tip of the inker.
6993 is not controlled or tested for ionic impurities. Use 6990.
Shelf Life: The shelf life for this ink series is six months from the date of shipment or twelve monthsfrom the date of manufacture,whichever is less.
Optimum storage condition is at 5-109C in the original unopened container. Allow ink to warmgradually to room temperature before use.

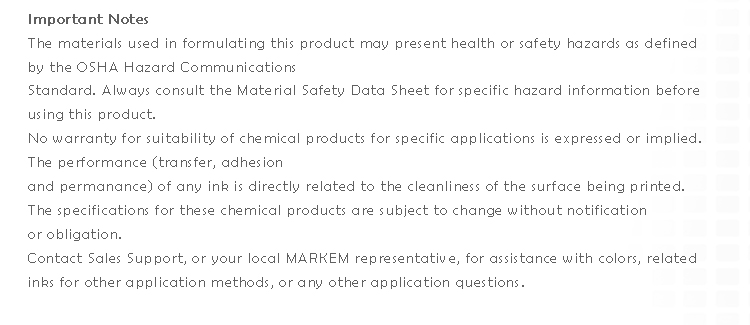

lmportant Notes
The materials used in formulating this product may present health or safety hazards as defined by the O5HA Hazard CommunicationsStandard. Always consult the Material Safety Data Sheet for specific hazard information beforeusing this product.
No warranty for suitability of che mical products for specific applications is expressed or implied.
The performance (transfer, adhesion and permanance) of any ink is directly related to the cleanliness of the surface being printed.The specifications for these chemical products are subject to change without notificationorobligation.
Contact Sales Sup port, or your local MARKEM representative, for assistance with colors, relatedinks for other application methods,or any other application questions.
