君睿科技提供专业的ZYGO7701&7702 Laser head 翻新,我司翻新不是对原有干涉计进行充气,而是全部更换全新的激光管,对原有电路进行校正,所有更换激光管都是美国原装进口,品质保证,我司提供的产品均提供一年质保期。

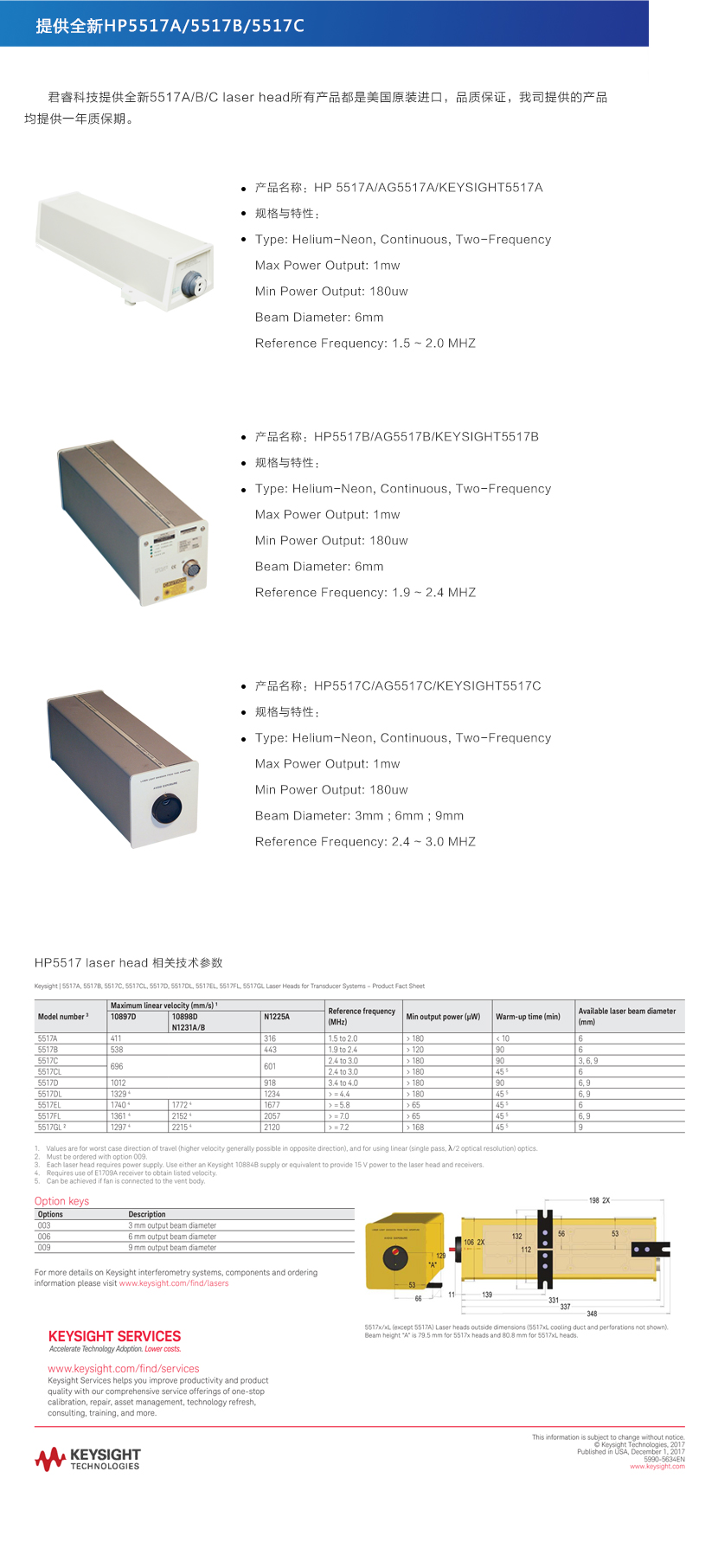

Keysight | 5517A, 5517B,5517C,5517CL,5517D,5517DL,5517EL,5517FL,5517GL Laser Heads for Transducer Systems - Product Fact Sheet
Model number³ | Maximum linear velocity(mm/s)¹ | Reference frequency(MHz) | Min output power(μw) | Warm-up time(min) | Available laser beam diameter(mm) | ||
10897D | 10898D N1231A/B |
N1225A | |||||
5517A | 411 | 316 | 1.5 to 2.0 | > 180 | < 10 | 6 | |
5517B | 538 | 443 | 1.9 to 2.4 | > 120 | 90 | 6 | |
5517C | 696 | 601 | 2.4 to 3.0 | > 180 | 90 | 3,6,9 | |
5517CL | 2.4 to 3.0 | > 180 | 45⁵ | 6 | |||
5517D | 1012 | 918 | 3.4 to 4.0 | > 180 | 90 | 6,9 | |
5517DL | 1329⁴ | 1234 | > = 4.4 | > 180 | 45⁵ | 6,9 | |
5517EL | 1740⁴ | 1772⁴ | 1677 | > = 5.8 | > 65 | 45⁵ | 6 |
5517FL | 1361⁴ | 2152⁴ | 2057 | > = 7.0 | > 65 | 45⁵ | 6,9 |
5517GL² | 1297⁴ | 2215⁴ | 2120 | > = 4.4 | > 168 | 45⁵ | 6 |
1.Values are worst case direction of travel (higher velocity generally possible in opposite direction),and for using linear(single pass,λ/2 optical resolution) optics.
2.Must be ordered with option 009.
3.Each laser head requires power supply. Use either an Keysight 10884B supply or equivalent to provide 15 V power to the laser head and receivers.
4.Requires use of E1709A receiver to obtain listed velocity.
5.Can be achieved if fan is connected to the went body.
Options | description |
003 | 3mm output beam diameter |
006 | 6mm output beam diameter |
009 | 9mm output beam diameter |
For more details on Keysight interferometry systems,components and ordering information please contact shansy@junr.com.cn.
